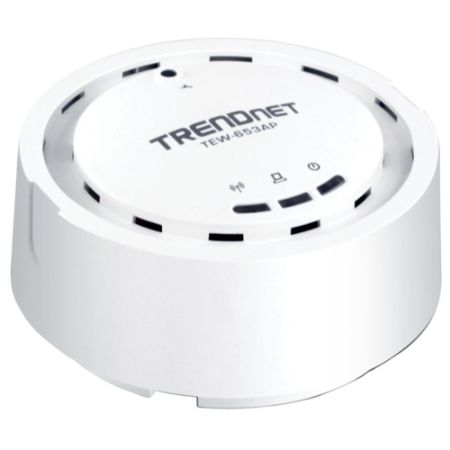

TRENDnet 300Mbps Wireless N PoE Access Point Item # 174678

 |
TRENDnet 300Mbps Wireless N PoE Access Point
$ 96 .29 / each $96.29
Add a Protection Plan (optional)  Learn More
Includes Coverage For Accidental Drops & Spills
In Stock
Free delivery
Estimated delivery 3-7 business days

    Description

    The N300 wireless PoE access point combines high speed wireless n coverage with Power over Ethernet (PoE) technology to deliver up to 12x the speed and 4x the coverage of wireless g.This feature rich device blends into most environments and offers access point, Wireless Distribution System (WDS), and repeater mode functionality.Define a weekly power saving schedule, view real time network traffic charts, turn off the flashing LED indicators, and assign individual VLANs for up to 4 separate SSIDs. Advanced antenna technology (MIMO) delivers superior range and eliminates dead spots. Synchronize wireless clients at the touch of a button with Wi-Fi Protected Setup (WPS). Advanced encryption protects valuable data and WMM Quality of Service (QoS) technology prioritizes video and audio packets.

    Back To Top

    Product Details

    Item # 174678
    Manufacturer # CE7307
    power source AC Adapter
    Wireless Transmission Speed 300 Mbit/s
    Wireless Security WEP 64/128 bit; WPA-PSK; WPA2-PSK; WPA; WPA2-Radius; IEEE 802.1x
    height 2 in
    Number of Network (RJ-45) Ports 1
    PoE (RJ-45) Port Yes
    width 4.7 in
    package contents 300Mbps Wireless N PoE Access Point; Multi-Language Quick Installation Guide; CD-ROM (User's Guide); Power Adapter; Mounting Kit
    depth 4.7 in
    Product Name 300Mbps Wireless N PoE Access Point
    Total Number of Antennas 1
    Antenna Gain 4 dBi
    manufacturer TRENDnet
    Management HTTP; SNMP v1/2c; VLAN; QoS
    weight 9.88 oz
    Eco-conscious Energy Efficient
    brand name TRENDnet
    Wireless LAN Standard IEEE 802.11n
    Input Voltage 12 V DC
    Power Over Ethernet (PoE) Supported PoE
    diameter 4.7"
    ISM Maximum Frequency 2.47 GHz
    ISM Band Yes
    eco-label/standard ENERGY STAR; RoHS
    ISM Minimum Frequency 2.41 GHz
    warranty length 3-year limited
    model name TEW-653AP
    Fast Ethernet Port Yes
    Show More ▾
    Back To Top

      Customer Reviews

      Back To Top

      From the Manufacturer|Powered by Webcollage

      Thank You Is the information in this section helpful? Yes / No

      N300 Wireless PoE Access Point

      • TEW-653AP (Version v1.0R)

        • Features Access Point, WDS, and Repeater modes
        • No need to install the device near a power source using PoE technology
        • Assign individual VLANs for up to four separate SSIDs
        • Advanced encryption, WMM® QoS and SNMP support

        The N300 Wireless PoE Access Point (model TEW-653AP) combines high speed wireless n coverage with Power over Ethernet (PoE) technology* to deliver up to 12x the speed and 4x the coverage of wireless g**. This feature rich device blends into most environments and offers Access Point, Wireless Distribution System (WDS), and Repeater mode functionality.

        Define a weekly power saving schedule, view real time network traffic charts, turn off the flashing LED indicators, and assign individual VLANs*** for up to 4 separate SSIDs. Advanced antenna technology (MIMO) delivers superior range and eliminates dead spots. Synchronize wireless clients at the touch of a button with Wi-Fi Protected Setup (WPS). Advanced encryption protects valuable data and WMM® Quality of Service (QoS) technology prioritizes video and audio packets.

      Network Solution

      Key Features

        • Wi-Fi compliant with IEEE 802.11n and IEEE 802.11b/g standards
        • Power device by an Ethernet cable using IEEE 802.3af Power over Ethernet (PoE) protocol
        • Functional Access Point, WDS and Repeater modes provide network flexibility
        • Advanced wireless security with 64/128-bit WEP, WPA/WPA2-RADIUS and WPA-PSK/WPA2-PSK
        • Supports multiple SSIDs (up to 4 SSIDs) with 802.1q VLAN tagging (AP mode)
        • High-speed data rates up to 300Mbps using 802.11n connection
        • Monitor bandwidth allocation through graphical interface
        • Wi-Fi Protected Setup (WPS) integrates wireless clients quickly
        • 802.1X Authentication protocol support
        • Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
        • Management via web browser
        • SNMP (v1, v2c) support
        • 3-year limited warranty
